6-XFMJ Series Front-terminal Gel Battery
The 6-XFMJ series front-terminal narrow gel battery is the product developed by SHOTO through the international advanced gel technology with outstanding performance and has been widely used in the world. With special grid design, corrosion-resistant alloy materials, superior quality gel electrolyte, proprietary activator and advanced sealing technology, 6-XFMJ series battery devotes itself to provide more stable and reliable backup power for communication and energy storage systems.
Main Application
Floating applications for telecom sites
Solar& wind energy storage system
Off-grid & bad-grid hybrid sites
UPS and emergency illumination
Benefits
Long life design for float application, 15years
Excellent charge acceptability and deep cycling performance
Suitable for 19inch/23inch cabinet, reduce the occupied area
High performance/price ratio and low annual operating cost
Technical Features
Special polymer gel electrolyte without flowing to avoid acid stratification and can prolong service life
Front terminal connection for fast and easy installation and maintenance
Excellent discharging ability in low current
High stability and security, millions of batteries are in service

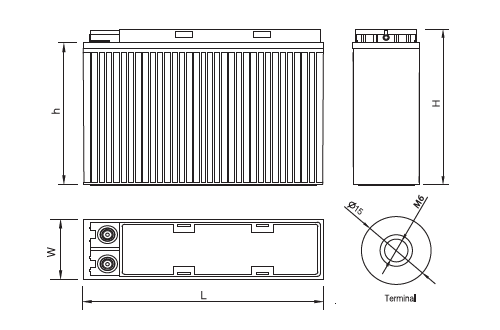

Drawings

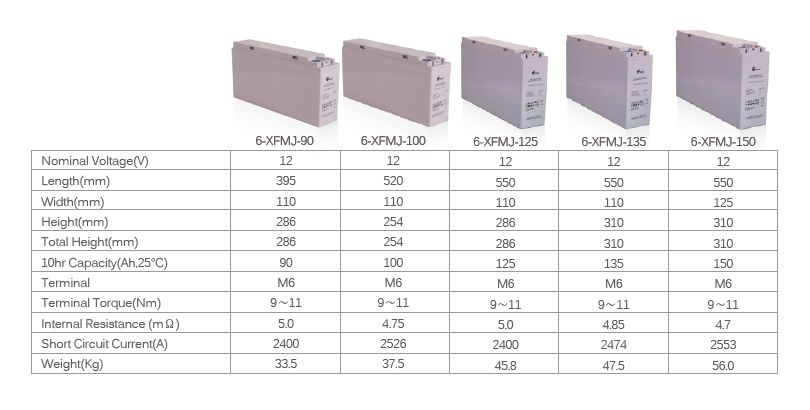

Specification
