6-FMXH Series High Temperature Battery（12V，100AH-190AH）

Best performance for continuous operation up to 35°C Extend service life under high temperature Excellent over discharge recovery capability

Shoto Mall

Main Applications

    ;    1、High temperature environment (35°C);

        2、Outdoor Base Station;

      ;  3、Floating Operation site;

      ;  4、UPS



Benefits

        1、Reduce operational cost (less cooling consumption);

        2、Reduce CO2 emission;

 ;       3、Secure operation under high temprature up to 55°C;

        4、Double floating life vs. traditional VRLA battery under 35°C

Technical Features

        1、Best performance for continuous operation up to 35°C;

         2、Extend service life under high temperature;

        3、Excellent over discharge recovery capability

Compliant standards

IEC60896-2

JISC8704-2

GB/T 19638.2

YD/T2657

Attain certificate

ISO9001:2008

ISO14001:2004

GB/T 28001-2001

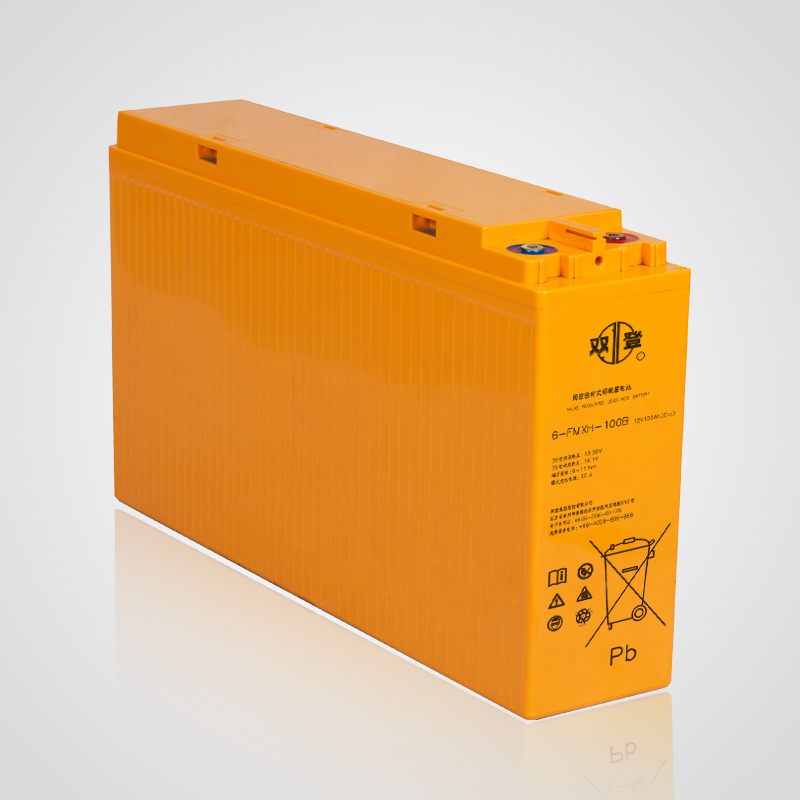

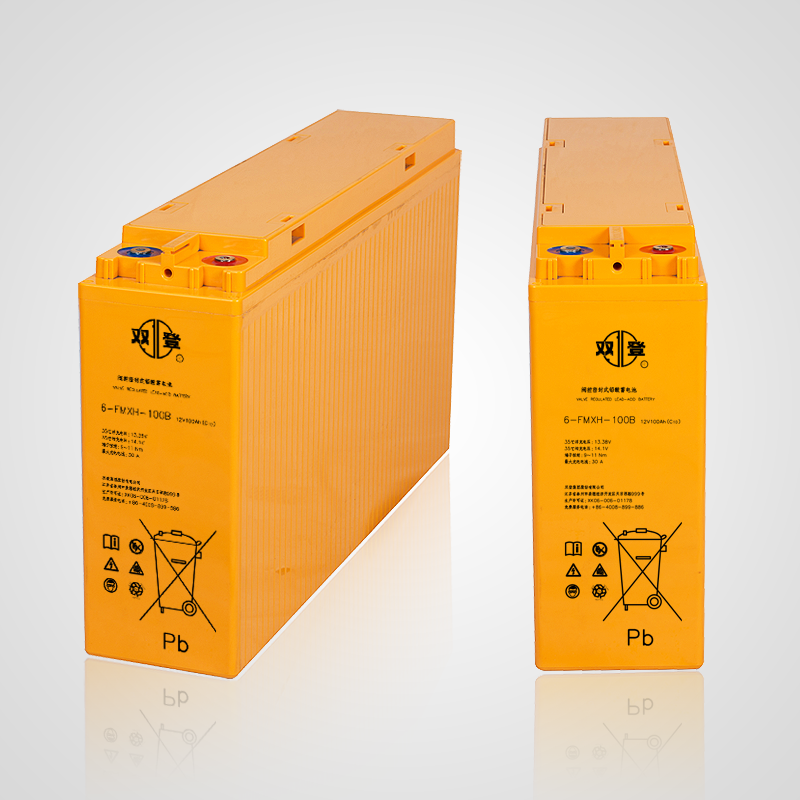

Product model pictures

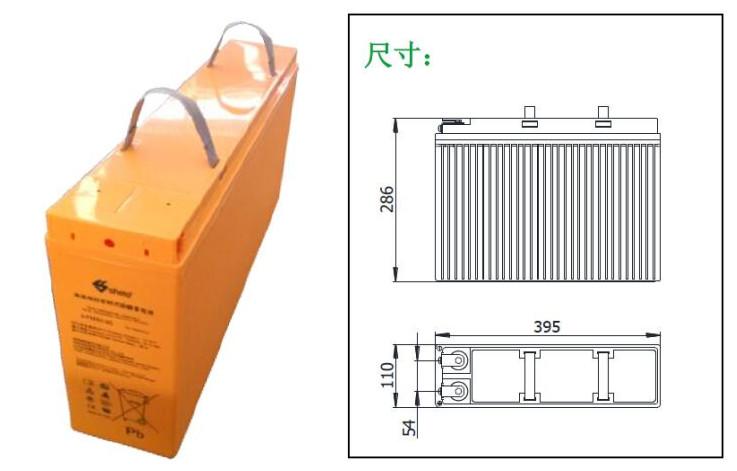

6-FMXH-100B

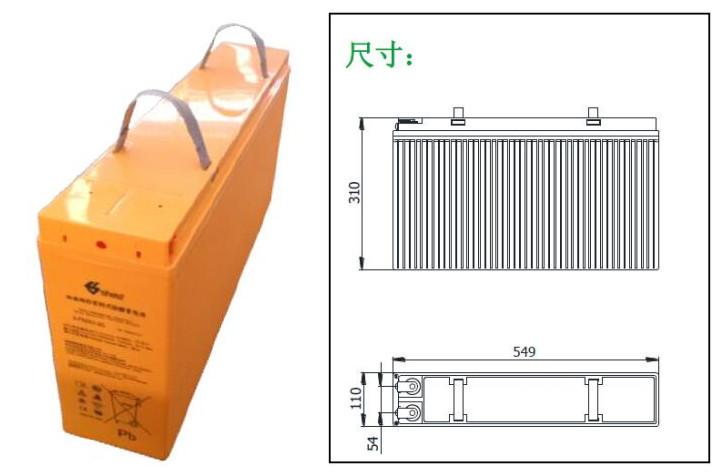

6-FMXH-150B

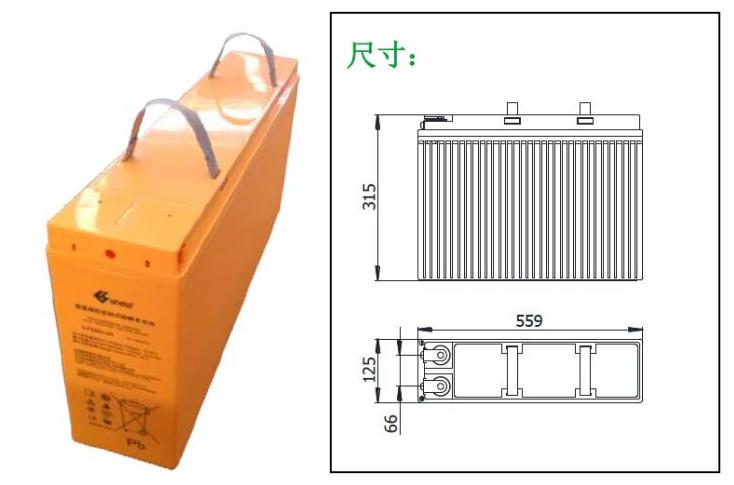

6-FMXH-170

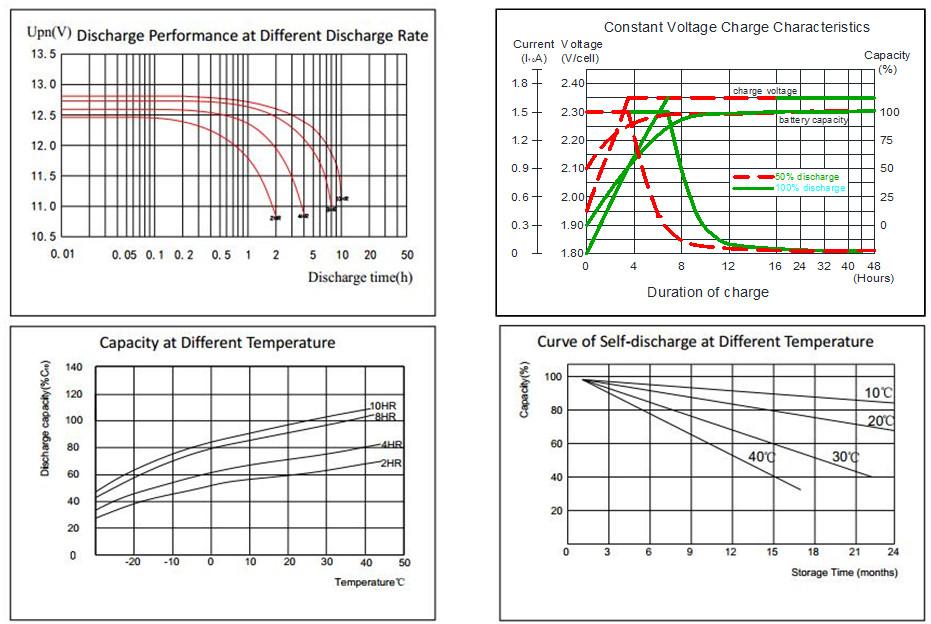

Performance curve

Technical Parameters

Type Normal Voltage Capacity Weight Dimensions Internal Resistance (full charged) Short- circuit current Self Discharge @ 35℃ (95℉) Operating Temperature Range Recommended Operating Temperature Recommended Charging Current Charging Voltage @35℃(95℉) Terminal Capacity Affected by Temperature(C10) Design life @35°C
6-FMXH-100B 12V 100Ah(10hr,1.80V/cell,25℃） 31.5kg L：395mm 4.3mΩ 2122A ＜4%/30 days Discharge： -40℃～65℃ 15℃～35℃ 20A Float: 2.23V/cell M6 105% @ 40℃ 10years
103Ah(10hr,1.80V/cell,35℃） W：110mm Charge： -20℃～45℃ Equalize: 2.35 V/cell 85 % @ 0℃
　 H：286mm Storage： -20℃～40℃ 　 60 % @ -20℃
6-FMXH-150B 12V 150Ah(10hr,1.80V/cell,25℃） 49kg L：549mm 3.7mΩ 2466A ＜4%/30 days Discharge： -40℃～65℃ 15℃～35℃ 30A Float: 2.23V/cell M6 105% @ 40℃ 10years
155Ah(10hr,1.80V/cell,35℃） W：110mm Charge： -20℃～45℃ Equalize: 2.35 V/cell 85 % @ 0℃
　 H：310mm Storage： -20℃～40℃ 　 60 % @ -20℃
6-FMXH-170 12V 170Ah(10hr,1.80V/cell,25℃） 57.5kg L：559mm 3.2mΩ 2852A ＜5%/28 days Discharge： -40℃～65℃ 15℃～35℃ 34A Float: 2.23V/cell M6 105% @ 40℃ 10years
175Ah(10hr,1.80V/cell,35℃） W：125mm Charge： -20℃～45℃ Equalize: 2.35 V/cell 85 % @ 0℃
　 H：315mm Storage： -20℃～40℃ 　 60 % @ -20℃
6-FMXH-190 12V 190 Ah @ 10hr to 1.80V per cell @ 25℃(77℉) 58kg L：559mm 3.35mΩ 2724A ＜4%/30 days Discharge： -40℃～65℃ 15℃～35℃ 38A Float: 2.23V/cell M6 105% @ 40℃ 10years
196 Ah @ 10hr to 1.80V per cell @ 35℃(95℉) W：125mm Charge： -20℃～45℃ Equalize: 2.35 V/cell 85 % @ 0℃
　 H：315mm Storage： -20℃～40℃ 　 60 % @ -20℃





Constant Current/Power Discharge Characteristics

Type chargeType F.V/Time 30min 1hr 2hr 3hr 4hr 5hr 6hr 8hr 10hr 12hr
6-FMXH-100B Constant Current Discharge
（unit: A (35℃)）		 1.70V 100 57 34.4 26.4 21.7 17.9 15.3 12.3 10.2 8.6
1.75V 94.6 55.1 34 25.9 21.4 17.7 15.2 12.2 10.1 8.5
1.80V 90.4 54.1 33.6 25.3 21 17.5 15.1 12.1 10 8.4
1.83V 87.3 51.9 33.2 25.1 20.8 17.3 15 12 9.9 8.3
1.85V 84.1 50.2 32.9 24.8 20.6 17.2 14.9 11.9 9.8 8.2
Constant Current Discharge
（unit: W/cell (35℃）		 1.70V 183.8 105.9 65.9 52 43.2 35.6 30.8 24.6 20.4 17.1
1.75V 175.8 104 65.5 51.2 42.7 35.2 30.5 24.4 20.2 16.9
1.80V 170.1 102.8 65.2 50.4 42.1 34.9 30.2 24.2 20.1 16.8
1.83V 166.3 99.3 64.7 49.9 41.8 34.6 30 24.1 19.9 16.6
1.85V 162.1 97 64.4 49.7 41.5 34.4 29.8 24 19.8 16.5
6-FMXH-150B Constant Current Discharge
（unit: A (35℃)）		 1.70V 150 85.5 51.6 39.6 32.6 26.9 22.7 18.3 15.2 12.7
1.75V 141.9 82.7 51 38.9 32.1 26.6 22.5 18.2 15.1 12.6
1.80V 135.6 81.2 50.4 38 31.5 26.3 22.3 18.1 15 12.5
1.83V 131 77.9 49.8 37.7 31.2 26 22.2 18 14.9 12.45
1.85V 126.2 75.3 49.4 37.2 30.9 25.8 22.1 17.9 14.8 12.4
Constant Current Discharge
（unit: W/cell (35℃）		 1.70V 275.7 158.9 98.9 78 64.8 53.4 44.7 36.6 30.4 25.4
1.75V 263.7 156 98.3 76.8 64.1 52.8 44.4 36.4 30.2 25.3
1.80V 255.2 154.2 97.8 75.6 63.2 52.4 44 36.3 30.1 25.2
1.83V 249.5 149 97.1 74.9 62.7 51.9 43.7 36.2 30 25.1
1.85V 243.2 145.5 96.6 74.6 62.3 51.6 43.5 36.1 29.9 25
6-FMXH-170 Constant Current Discharge
（unit: A (35℃)）		 1.70V 179.8 100.2 61.7 47.5 38.3 30.5 26.1 20.9 17.4 14.6
1.75V 170 96.8 61 48 37.3 30.1 25.9 20.7 17.2 14.4
1.80V 160.8 95 60.2 47.1 37.1 29.8 25.7 20.5 17 14.2
1.83V 153.7 91.3 59.5 46.6 36.6 29.4 25.5 20.3 16.8 14
1.85V 148.4 88.1 58.9 46 36.4 29.2 25.3 20.1 16.6 13.9
Constant Current Discharge
（unit: W/cell (35℃）		 1.70V 326.1 186.1 118.1 96.6 75.6 60.6 52.3 41.8 34.7 29
1.75V 312.5 182.8 117.5 95.2 74.3 59.9 51.9 41.4 34.4 28.6
1.80V 298.8 180.7 116.7 93.7 73.5 59.3 51.4 41.2 34.2 28.6
1.83V 289.2 174.6 116 92.8 73 58.8 51 41 33.8 28.3
1.85V 282.7 170.6 115.4 92.4 72.3 58.4 50.6 40.8 33.6 28.1
Type chargeType F.V/Time 30min 1hr 2hr 3hr 4hr 5hr 6hr 8hr 10hr 20hr
6-FMXH-190 Constant Current Discharge
（unit: A (35℃)）		 1.70V 196.4 111.9 65.7 48.6 38.9 33 29.2 23.5 19.4 10.3
1.75V 185.8 108.3 64.9 48.2 38.5 32.8 29 23.3 19.2 10.2
1.80V 177.6 106.3 63.9 47.6 38.1 32.4 28.8 23.1 19 10.1
1.83V 171.5 102 63.2 47.2 37.7 32 28.6 22.9 18.8 10
1.85V 165.2 98.6 62.6 46.7 37.3 31.8 28.4 22.7 18.6 9.9
Constant Current Discharge
（unit: W/cell (35℃）		 1.70V 360.9 208.1 126 94.7 75.6 65.1 58.6 46.8 38.9 20.4
1.75V 345.3 204.2 124.8 94.4 75.5 65 58.1 46.5 38.5 20.3
1.80V 334.2 201.9 124.2 93.9 74.6 64.7 57.5 46.1 38.3 20.2
1.83V 326.7 195.1 123.2 93.7 74.4 64.3 57.1 45.9 37.9 20.1
1.85V 318.4 190.5 122.5 92.9 74.3 64.2 56.7 45.7 37.7 20
